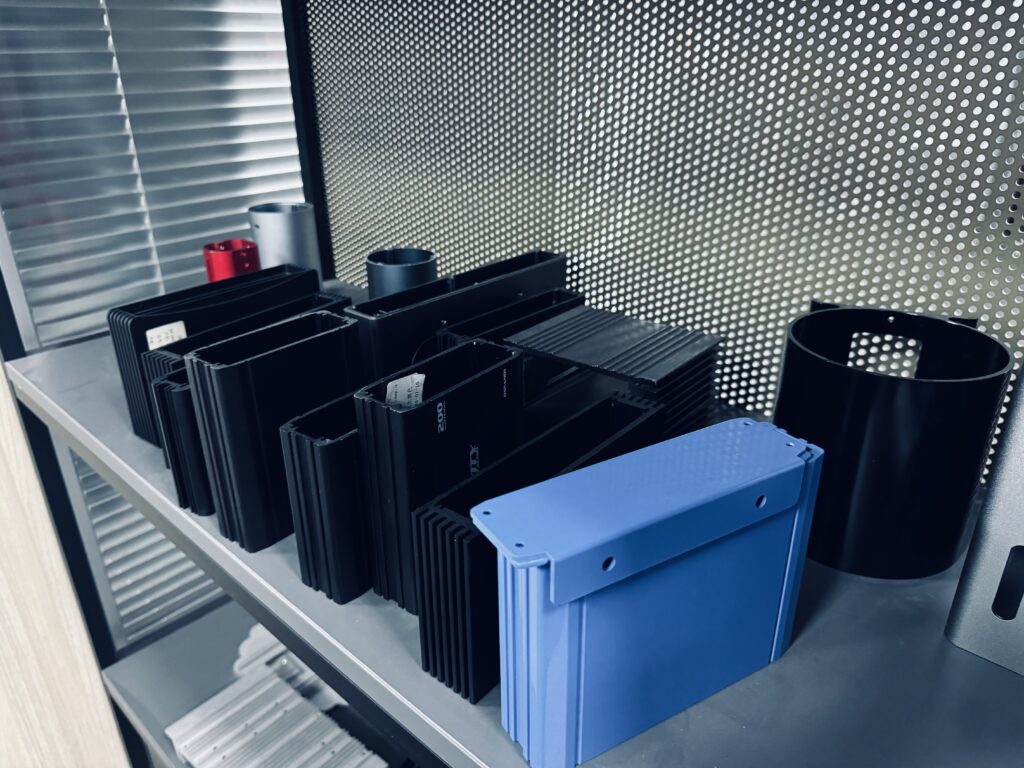

Six Core Advantages of Aluminum Alloy Electronic Enclosures

In the field of electronic devices, the choice of enclosure material directly impacts product performance, user experience, and market competitiveness. Aluminum alloy, with its unique physical and chemical properties, has become the preferred enclosure material for smartphones, laptops, communication base stations, industrial controllers, and other electronic devices. Below, we systematically analyze the core advantages of aluminum enclosures in electronic devices from technical, economic, and user experience perspectives.

1. Perfect Balance of Lightweight Design and Structural Strength

Weight Advantage: Aluminum alloy density (2.7 g/cm³) is only 1/3 that of stainless steel, reducing device weight by 60–70% at the same volume. For example, a 5G router enclosure made of 6063 aluminum alloy weighs 65% less than a steel counterpart while meeting IP67 protection standards.
Mechanical Performance: 7075-T6 aluminum alloy boasts a tensile strength of 572 MPa, surpassing ordinary structural steel (355 MPa). In drop tests, a 1.5mm-thick 6061 aluminum alloy smartphone frame can withstand a 1.2-meter drop impact, with 30% higher energy absorption efficiency than magnesium alloy.
Thin-Wall Design: Precision stamping allows aluminum enclosures to achieve wall thickness as low as 0.6mm (e.g., ultra-thin laptops). Combined with rib reinforcement designs, stiffness increases by 40% while reducing weight.

2. Exceptional Thermal Management

Thermal Conductivity: Aluminum alloy’s thermal conductivity (237 W/m·K) is 1,185 times higher than plastic (0.2 W/m·K). For gaming phones, CNC-machined 5083 aluminum alloy backplates reduce CPU temperatures by 8–12°C, preventing performance throttling.
Integrated Cooling Systems: Die-casting enables one-piece heat dissipation fins. For instance, base station AAU enclosures integrate 576 cooling fins, improving heat exchange efficiency by 45%.
Обработка поверхности: Anodized surfaces enhance radiative cooling. Blackened 5052 aluminum alloy enclosures achieve a radiation coefficient of 0.85—3x higher than polished surfaces.
Thermal Expansion Matching: Aluminum’s thermal expansion coefficient (23×10⁻⁶/°C) closely matches PCBs (17×10⁻⁶/°C), minimizing connector failure risks during temperature cycles.

3. Electromagnetic Shielding and Signal Integrity

Shielding Effectiveness: 5052 aluminum alloy provides 65dB shielding at 1GHz, with 10x greater stability than metal-coated plastic. Conductive oxidation reduces surface resistance to 0.1Ω/sq, complying with IEC 61000-4-3 standards.
5G Applications: 6061 aluminum alloy cavities for 28GHz millimeter-wave devices show insertion loss <0.15dB, outperforming zinc alloy solutions. High-purity aluminum (99.99%) in base station filters increases Q-value by 30% and out-of-band suppression by 5dB.
Grounding Optimization: Monolithic aluminum enclosures replace traditional copper grounding straps, cutting cable use by 60% in industrial PLCs.

4. Environmental Durability and Longevity

Corrosion Resistance: With 25μm anodized film, aluminum withstands 1,000 hours of neutral salt spray testing (GB/T 10125). 5086 alloy used in marine equipment exhibits an annual corrosion rate <0.02mm in 3.5% Cl⁻ environments.
Surface Treatments: Micro-arc oxidation creates 10–50μm ceramic layers, offering 8x the wear resistance of standard anodization. Nano-coatings (50μm) pass 5,000-cycle steel wool abrasion tests (ASTM D4060).
Extreme Temperature Tolerance: 2024 aluminum alloy maintains structural integrity from -196°C (liquid nitrogen) to 300°C. After 1,000 thermal cycles (-40°C ↔ 85°C), deformation remains <0.1%.

5. Manufacturing Efficiency and Cost Benefits

Precision Forming:
- Die-Casting: ADC12 aluminum castings achieve CT6 precision, with smartphone frame yield rates exceeding 98%.
- Superplastic Forming: 5754 alloy elongates >300% at 260°C, enabling 0.3mm ultra-thin curved surfaces.
Cost Savings: CNC machining aluminum reduces tool wear by 60% vs. stainless steel. Continuous stamping lines reach 120 strokes/minute—3x faster than magnesium alloy.
Sustainability: Recycled aluminum (e.g., ALSi7Mg) cuts production costs by 40% and CO₂ emissions by 95%. Over a 10-year lifecycle, maintenance costs are 1/4 those of stainless steel.

6. Aesthetic Design and Eco-Friendly Value

Surface Customization: Anodizing supports 200+ Pantone colors. MacBook’s Space Gray finish precisely controls oxide film thickness at 10±1μm. Пескоструйная обработка achieves Ra0.05–0.1μm roughness for a premium tactile feel.
Structural Innovation: Foldable phones use 7-series aluminum alloy hinges tested over 200,000 cycles. Aluminum-carbon fiber-aluminum “sandwich” structures boost stiffness by 50% while reducing weight by 25%.
Circular Economy: 100% recyclability complies with EU ELV directives. Each kg of recycled aluminum saves 14kWh energy and reduces CO₂ emissions by 9kg.

Industry Applications

Consumer Electronics: iPhone’s aluminum alloy frame uses 7000-series alloy and CNC machining to achieve 0.25mm ultra-narrow bezels.
Telecom Equipment: Huawei’s 5G M…
